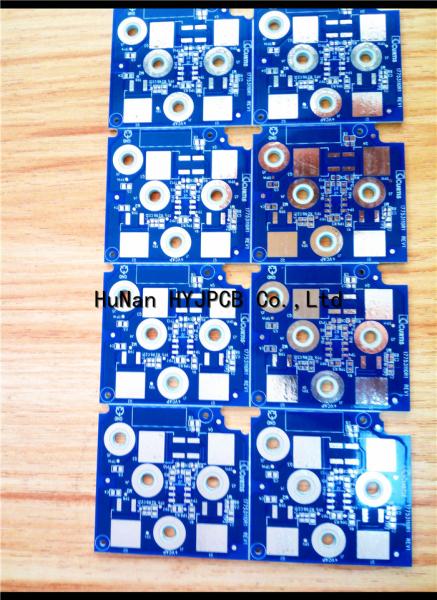

Copper core PCB ,base copper pcb, New energy vehicles,Electric Car charging stations,lighting,
| PCB Type | Material Type | Material Brand | |||||||
| Single side pcb Double side pcb Multilayer pcb Single side pcb | CEM-1 FR-4 Aluminum Copper Ceramic | SY KB IL LianMao HongRen Arlon KingWong VT Laird 5052 Series | |||||||
| The advantage of us | |||||||||
| 1 | We have our own, independent of the wastewater treatment system.Make sure there will be a very big development space and the stability of the production environment in the futurer | ||||||||
| 2 | Flexible operation, can be in the production of small batches.Also can produce large quantities.Can save production quickly. | ||||||||
| 3 | The urgent double sample production for 24 hours, The urgent Multilayer sample production for 48 hours.completely according to customer requirements | ||||||||
| About the Files | |||||||||
| 1 | You have gerber files or PCB files | ||||||||
| 2 | You have PCB samples. send to us the sample. we will help for free copy it | ||||||||
| How to calculate the price | |||||||||
| 1 | For example, your double sided PCB size is 100 mm * 200 mm wide, long double sided PCB price is $60 a square meters.So the calculation results 100MM*200MM*$60/1000000=$1.2 | ||||||||
| 1 inch=25.4mm | |||||||||
| About the transportation. | |||||||||
| All the quotation does not include the transportation cost | |||||||||
| 1 | You find a freight forwarding company to help you, When we finished the PCB ,We wiill send to your forwarder company directly .You directly to the transport charges paid to forwarder company | ||||||||
| 2 | We help you responsible for transport, freight included in the price.According to how much money a kilogram computation. | ||||||||
| 3 | In order to save costs.The best is you have familiar forwarder company | ||||||||
Copper base PCB, one kind is through the way of pressing insulating
layer on copper and copper foil, copper base PCB has the advantage
of high thermal conductivity, can reach 400 w,
Company adopts domestic and international the most advanced metal
materials, has provided the safeguard for manufacturing high
quality products, more companies constantly update products provide
a solid backing
Process Capability
| Material Type: FR4/Aluminum/Ceramic/CEM-1/Copper/polytef | |||||||
| Board Thickness: 0.2-6.0mm | |||||||
| Min Line Width/spacing:0.08mm | |||||||
| Max working size:520*620mm(21.25x24.5inch) | |||||||
| Min thickness Board for HAL surface finished:0.4mm | |||||||
| Min thickness 4 layer: 0.4mm | |||||||
| Min/Max layer count : 1/20 | |||||||
| Min SMD Pitch : 0.125mm | |||||||
| Layer to Layer registration:<0.1mm | |||||||
| Differential impedance:+/-10% | |||||||
| Plating spect ratio: <8:1 | |||||||
| Surface Finished: LF-HASL ,Immersion Gold/Tin/Silver ./Plating Gold/OSP, | |||||||
| Solder Mask:Green , Red, Blue,White, Black,Yellow. | |||||||
| Cooper thickness: 0.5-12OZ | ||||||
| Min hole size: 0.25mm( finished hole size) | ||||||
| Drilling accuracy:+/-0.05 | ||||||
| Min Inner layer thickness:0.1mm | ||||||
| Certificate: Rohs, Iso9001, UL(in certification) | ||||||
| Min thickness 6 layer:0.6mm | ||||||
| Lamination evenness :+/-0.05mm | ||||||
| Min Dam Between Fine Pitch: >0.1mm | ||||||
| Impedance control:+/-5% | ||||||
| Board bow/twist tolerance:<0.7% | ||||||
| Plating COV: <10% | ||||||
| PTH backlight : 9-9.5 level | ||||||
| Plating extensibility:>15% | ||||||
|
|
